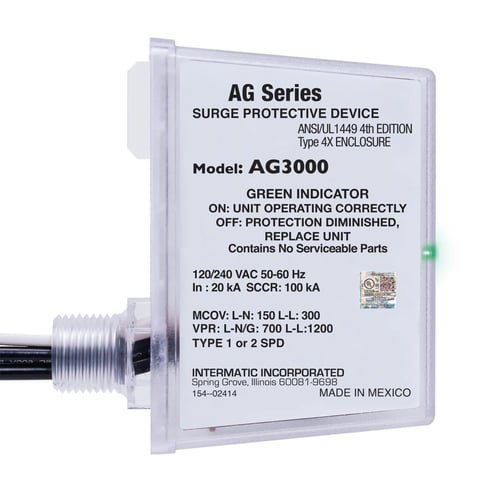

Intermatic AG3000 Surge Protective Device, 120/240 VAC, 50/60 Hz, 3 Poles, 20 kA SCCR, 1 Phase
Intermatic AG3000 Surge Protective Device, 120/240 VAC, 50/60 Hz, 3 Poles, 20 kA SCCR, 1 Phase
Intermatic | ID: 263532
Manufacturer Part Number: AG3000
Technical Documents
Specifications
| Description | INT-MAT AG3000 SRG PRTTV DEVICE |
| Voltage Rating | 120/240V |
| Application | HVAC Equipment, Outdoor Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls and Motors |
| Connection | Lead |
| Dimensions | 1/2 IN H |
| Enclosure Type | NEMA 1/2/4X |
| Environmental Conditions | -13 to 140 deg F Operating Temperature |
| Frequency Rating | 50/60 HZ |
| Indication Type | Green LED |
| Material | Polycarbonate |
| Mounting Type | Surface |
| Number Of Poles | 3 Pole |
| Operating Temperature | -13 to +140 DEG F, -25 to +60 DEG C |
| Phase | 1 |
| Short Circuit Rating | 20 kA |
| Special Features | Features: LED Indicator provides Status;UV Resistant |
| Type | Type 1/Type 2 Surge Protective Device |
| Type Of Indicators | Green LED |
| Wiring Configuration | L1, L2, L/N-G |
