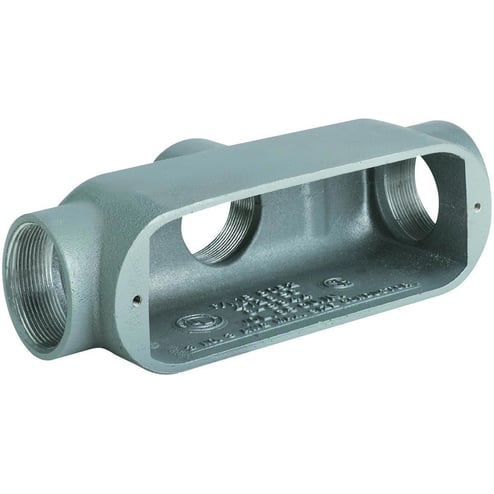

Killark OTB-3 O Series Type TB Conduit Body, 1 in Hub, Form 7 Form, 12 cu-in Capacity, Aluminum, Powder Coated
Killark OTB-3 O Series Type TB Conduit Body, 1 in Hub, Form 7 Form, 12 cu-in Capacity, Aluminum, Powder Coated
KILLARK | ID: 167909
Manufacturer Part Number: OTB-3
Specifications
| Description | KLRK OTB-3 1-IN AL TB CONDUIT BODY |
| Trade Size | 1IN |
| Application | To provide access to conductors for pulling, splicing and maintenance threaded for rigid conduit and IMC |
| Capacity | 12 cu-in |
| Catalog Description (MFR) | 1" TB Hub, Aluminum O Series Conduit Body |
| Color | Gray |
| Dimensions | 7-1/8 IN L x 1-13/16 IN W x 2-11/16 IN H |
| Finish | Powder Coated |
| Form | Form 7 |
| Hub Size | 1 In |
| Marketing Message (MFR) | Killark is known for providing individual client solutions to complex environmental requirements. Reliable and proven technology, coupled with value added engineering enables lower total installation costs with a lifetime of savings. |
| Material | Aluminum |
| Product Name | OTB-3 - 1" TB Hub, Aluminum O Series Conduit Body |
| Special Features | Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Interchangeable with competitive products. Volume is 12 cu. in. |
| Standard | UL File No. E3397, CSA File No. LR11852, Federal Specification W-C-586D/A-A 50563, NEC 501.10(b) Class I Div 2, 502.10, 503.10 |
| Type | Type TB |
