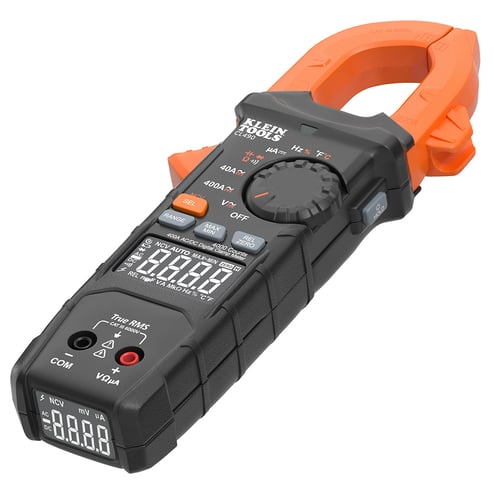

Klein CL490 Clamp Meter, 400 A at 600 VAC/VDC, 40 mOhm, 10 Hz to 60 kHz, 1.6 in Jaw, Digital Display
Klein CL490 Clamp Meter, 400 A at 600 VAC/VDC, 40 mOhm, 10 Hz to 60 kHz, 1.6 in Jaw, Digital Display
Klein Tools | ID: 686182
Manufacturer Part Number: CL490
Technical Documents
Specifications
| Description | KLEIN CL490 DUAL DISPLAY CLAMPMETER |
| Accuracy | ± (% of Reading + # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65° to 83°F (18° to 28°C) |
| Application | Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple |
| Auto Power Off | Yes, Unless Disabled on Startup |
| Battery Type | 2 x AA |
| Catalog Description (MFR) | Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity,frequency, and capacitance all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display. |
| Certifications | ECCN, PROP65 |
| Dimensions | 8.46 IN H x 1.5 IN W x 3.54 IN L |
| Display | Digital |
| Frequency Rating | 10 Hz to 60 kHz |
| Functions | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| Included | Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; 2 x AA Batteries |
| Jaw Capacity | 1.6 in |
| Marketing Message (MFR) | Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity,frequency, and capacitance; all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display. |
| Material | ABS/Electronics |
| Operating Temperature | -40 to 1000 deg C |
| Power Sources | (2) AA Batteries |
| Resistance | 40 MOhm |
| Safety Rating | IEC EN 61010-1, 61010-2-032/IEC EN 61326-1, 61326-2-2 |
| Special Features | Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032, Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032 |
| Temperature Range | -40° to 1832°F (-40° to 1000°C) |
| Type | Dual Screen AC/DC Current TRMS Clamp |
