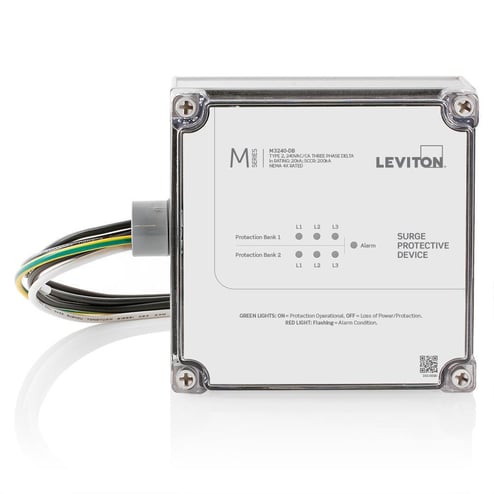

Leviton M3240-DB Type 2 Surge Protective Device, 240 VAC, 3 Phase Delta
Leviton M3240-DB Type 2 Surge Protective Device, 240 VAC, 3 Phase Delta
LEVITON | ID: 653199
Manufacturer Part Number: M3240-DB
Technical Documents
Specifications
| Description | LEV M3240-DB SPD PANEL M DELTA/240VAC/CA |
| Application | Indoor, Outdoor, Ideal for Point-of-entry Or Main Service Entrance Installation, the M series offers greater protection in a wide variety of voltage configurations |
| Catalog Description (MFR) | Type 2 Surge Protective Device, 240 VAC, Three Phase Delta |
| Color | Gray |
| Dimensions | 6.89 IN H x 7.69 IN W x 2.99 IN D |
| Enclosure Type | NEMA 4X |
| Environmental Conditions | -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity |
| Frequency Rating | 50/60 HZ |
| Indication Type | LED/Audible Alarm |
| Material | Polycarbonate |
| Mounting Type | Surface |
| Phase | 3 |
| Short Circuit Rating | 200 kA |
| Standard | ANSI/IEEE C-62.41.1-2002/C-62.41.2-2002/C-62.45-2002 Specified, CSA C22.2 No. 269.1-17, 2017-02 Certified, RoHS M Series Compliant, UL 1449 5th Edition: 2021 Listed, cULus Listed, PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm |
| Type | Type 2 |
| Wire Size | 10 AWG |
