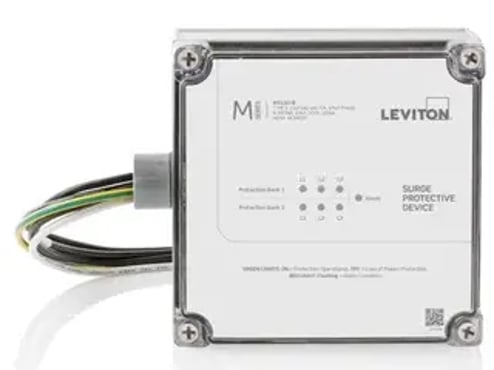

Leviton M3277-YB M Series Type 2 Surge Protective Device, 50/60 Hz, 3 Phase, 10 AWG Wire

Screenshot 2024 11 26 152114

Specifications

Description LEV M3277-YB SPD PANEL M WYE/277VAC/CA
Application Indoor, Outdoor, Ideal for Point-of-entry Or Main Service Entrance Installation, the M series offers greater protection in a wide variety of voltage configurations
Catalog Description (MFR) Type 2 Surge Protective Device, 480Y/277 VAC, Three Phase WYE
Color Gray
Dimensions 6.89 IN H x 7.69 IN W x 2.99 IN D
Enclosure Type NEMA 4X
Environmental Conditions -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity
Frequency Rating 50/60 HZ
Indication Type LED/Audible Alarm
Marketing Message (MFR) Leviton®, M3277-YB, Surge Protective Device, Type 2, Series: M Series, 480Y/277 VAC Electrical Rating, 50/60 Hz Frequency, 3 ph, 10 AWG Wire, 200 kA Short Circuit, 130 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, LED/Audible Alarm Indicator, Environmental Conditions: -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity, NEMA 4X Enclosure, Surface Mounting, 6.89 in H x 7.69 in W x 2.99 in D Dimensions, Polycarbonate, Gray
Material Polycarbonate
Mounting Type Surface
Phase 3
Short Circuit Rating 200 kA
Standard ANSI/IEEE C-62.41.1-2002/C-62.41.2-2002/C-62.45-2002 Specified, CSA C22.2 No. 269.1-17, 2017-02 Certified, RoHS M Series Compliant, UL 1449 5th Edition: 2021 Listed, cULus Listed, PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm
Type Type 2
Wire Size 10 AWG
