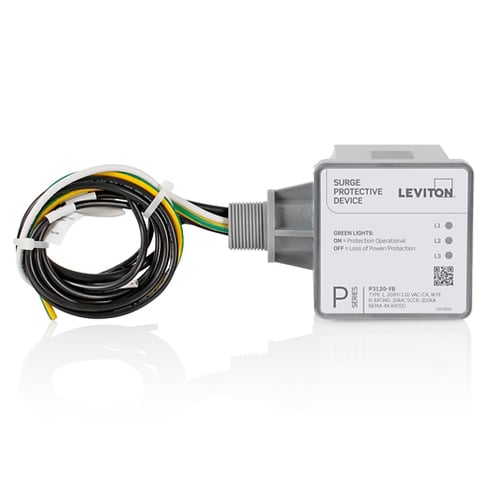

Leviton P3120-YB Type 1 Surge Protective Device, 208Y/120 VAC, 3 Phase WYE
Leviton P3120-YB Type 1 Surge Protective Device, 208Y/120 VAC, 3 Phase WYE
LEVITON | ID: 612749
Manufacturer Part Number: P3120-YB
Technical Documents
Specifications
| Description | LEV P3120-YB SPD PANEL P WYE/120VAC/CA |
| Application | Indoor, Outdoor, Residential and Light Commercial |
| Catalog Description (MFR) | Type 1 Surge Protective Device, 208Y/120 VAC, Three Phase WYE |
| Color | Gray |
| Dimensions | 3.25 IN H x 5.02 IN W x 2.93 IN D |
| Enclosure Type | NEMA 4X |
| Environmental Conditions | -40 to 60 deg C Storage Temperature, 0 to 95% Non-Condensing Humidity |
| Frequency Rating | 50/60 HZ |
| Indication Type | LED/Audible Alarm |
| Material | Polycarbonate |
| Mounting Type | Surface |
| Phase | 3 |
| Short Circuit Rating | 200 kA |
| Standard | ANSI/IEEE C-62.41.1-2002/C-62.41.2-2002/C-62.45-2002 Specified, CSA C22.2 No. 269.1-17, 2017-02 Certified, NEC 285 Certified, REACH Compliant, RoHS Compliant, UL 1449 5th Edition: 2021 Listed, cULus Listed, PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm |
| Type | Type 1 |
| Wire Size | 12 AWG |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 2
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 4
- Medina Qty 1
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
