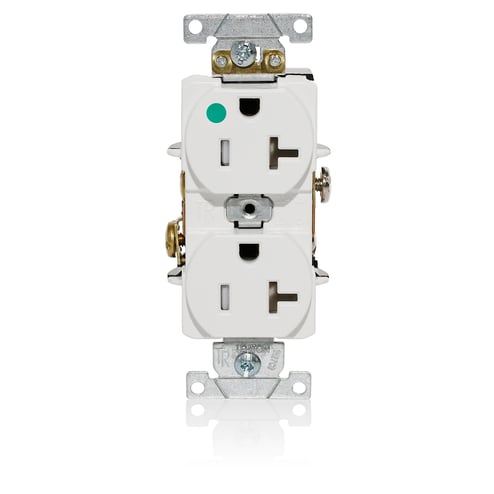

Leviton T8300-W 20 Amp, 125 Volt, Tamper-Resistant , White
Leviton T8300-W 20 Amp, 125 Volt, Tamper-Resistant , White
LEVITON | ID: 344621
Manufacturer Part Number: T8300-W
Technical Documents
Specifications
| Description | LEV T8300-W 20A 125V RECEPTACLE |
| Amperage Rating | 20 A |
| Voltage Rating | 125V |
| Application | Healthcare Facilities, Educational Buildings/Dorms and Institutional Buildings |
| Catalog Description (MFR) | Duplex Receptacle, Tamper-resistant, Hospital Grade, 2-Pole 3-Wire Grounding, NEMA 5-20R, 20A-125V, Flat Face, Back And Side Wired, White. 1-piece Ground-Contractor Pack |
| Color | White |
| Dimensions | 4.06 IN H x 1.71 IN W x 1.17 IN D |
| Grade | Hospital |
| Horsepower | 1 HP |
| Material | PBT Polyester Blend |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 Pole |
| Number Of Wires | 3 |
| Special Features | Tamper-Resistant |
| Standard | ANSI C-73, cULus Listed, CSA C22.2 No. 42, UL 498, Federal Spec WC-596, UL 94 V-0 Flammability Rated, NOM-ANCE, NEMA WD-1, NEMA WD-6, NEC 406 |
| Type | Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Tamper-Resistant |
