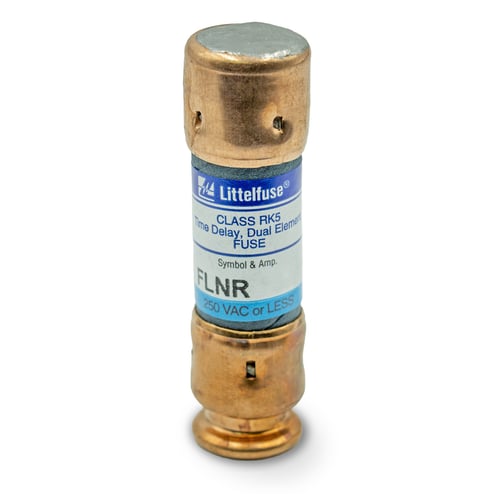

LittelFuse FLNR010 10 Amp, 250 Volt, Class RK5 Time Delay Fuse
LittelFuse FLNR010 10 Amp, 250 Volt, Class RK5 Time Delay Fuse
LittelFuse | ID: 632774
Manufacturer Part Number: FLNR010
Technical Documents
Specifications
| Description | LFSE FLNR010 FUS 250V T/D CLASS RK510A |
| Amperage Rating | 10 A |
| Voltage Rating | 250V |
| Application | Service Entrance Switches, Transformers, Switchboard Mains and Feeders, Motor Control Central Mains, Motor Branch Circuits and All General Purpose Circuits Applications |
| Catalog Description (MFR) | FLNR010 is a Class RK5 fuse with an ampere rating of 10 and cartridge-style construction. |
| Certifications | PROP65 |
| Frequency Rating | 50/60 HZ |
| Fuse Type | Time Delay |
| Interrupt Rating | 200/20 kA |
| Marketing Message (MFR) | Littelfuse FLNR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLNR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses. |
| Material | Fiber |
| Mounting Type | Holder |
| Response Time | 10 s |
| Special Features | Time-Delay |
| Standard | UL 248-12, E81895, CSA LR29862, Federal Specification WF-1814, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Type | Current Limiting |
Availability
- Akron Qty 10
- Bedford Qty 11
- Chardon Qty 0
- Cleveland Qty 10
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 22
- Medina Qty 0
- Middleburg Qty 4
- Streetsboro Qty 0
- Westlake Qty 9
- Willoughby Qty 6
- Youngstown Qty 0
