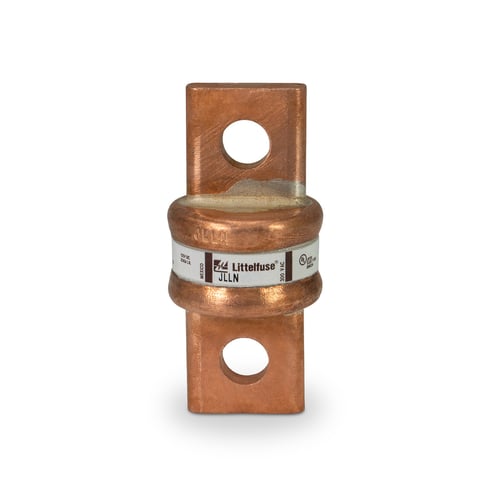

LittelFuse JLLN400 400 Amp, 300 Volt, Class T Fast Acting Fuse

1280 ovn P Kv Q Bu C11 Am V0

Technical Documents

Specifications

Description LFSE JLLN400 FUS 300V F/A CLASS T400A
Amperage Rating 400 A
Voltage Rating 300V
Application Variable Speed Drive Applications
Catalog Description (MFR) JLLN400 is a Class T fuse with an ampere rating of 400 and knife-blade-style construction.
Certifications PROP65
Fuse Type Fast Acting
Interrupt Rating 20/200 kA
Marketing Message (MFR) Space saving class T fuses are the most compact fuses available in ratings above 30 A less than one-third the size of comparable class R fuses. When rated in accordance with the NEC, class T fuses provide fast acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of class T fuses must be increased to prevent opening on inrush currents. In such instances, class T fuses may provide only short circuit protection.
Material Melamine
Mounting Type Holder
Response Time Blade
Special Features Current-limiting
Standard UL 248-15, UL File No. E81895, CSA Certified, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
Type Current Limiting
