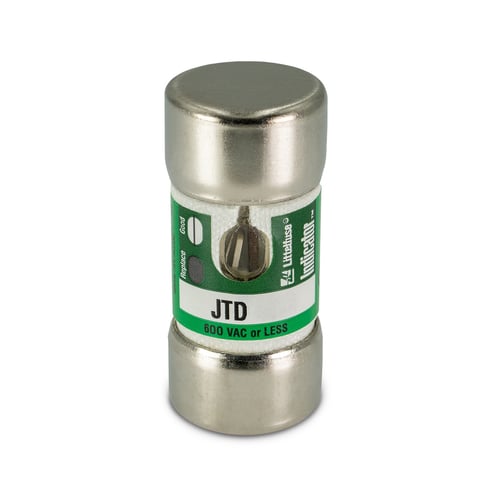

LittelFuse JTD040ID 40 Amp, 600 Volt, Class J Time Delay Indicating Fuse
LittelFuse JTD040ID 40 Amp, 600 Volt, Class J Time Delay Indicating Fuse
LittelFuse | ID: 634208
Manufacturer Part Number: JTD040ID
Technical Documents
Specifications
| Description | LFSE JTD040ID FUS 600V T/D CLASS J40A |
| Amperage Rating | 40 A |
| Voltage Rating | 600V |
| Application | Motor Control Centers Applications |
| Catalog Description (MFR) | JTD040 is a Class J fuse with an ampere rating of 40 and cartridge-style construction. |
| Certifications | PROP65 |
| Fuse Type | Time Delay |
| Interrupt Rating | 200/20 kA |
| Marketing Message (MFR) | The Littelfuse POWR-PRO JTD_ID Indicator Class J fuse provides visual blown fuse indication and maximum protection in a compact package. The compact Class J package was designed specifically for circuits where space is at a premium. The current limiting time delay JTD_ID offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of JTD_ID Indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety. |
| Material | Melamine |
| Mounting Type | Holder |
| Special Features | Time-Delay |
| Standard | UL 248-8 File No.E81895, CSA File No.LR29862, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Type | Current Limiting |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 12
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
