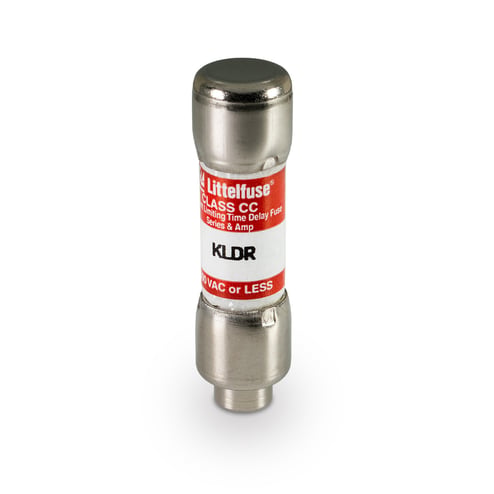

LittelFuse KLDR.500TXP .500 Amp, 600 Volt, Class CC Time Delay Fuse
LittelFuse KLDR.500TXP .500 Amp, 600 Volt, Class CC Time Delay Fuse
LittelFuse | ID: 634213
Manufacturer Part Number: KLDR.500TXP
Technical Documents
Specifications
| Description | LFSE KLDR.500TXP FUS 600V T/D CLASSCC .500A ROHS |
| Amperage Rating | 0.5 A |
| Voltage Rating | 600V |
| Application | For transformer protection applications |
| Catalog Description (MFR) | KLDR.500 is a Class CC fuse with an ampere rating of 0.5. |
| Certifications | PROP65 |
| Fuse Type | Time Delay |
| Interrupt Rating | 20/200 kA |
| Marketing Message (MFR) | KLDR fuses are time delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors. |
| Material | Melamine |
| Mounting Type | Holder |
| Response Time | 12 s |
| Special Features | Time-Delay |
| Standard | UL 248-4, E81895, CSA LR29862, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Type | Current Limiting |
