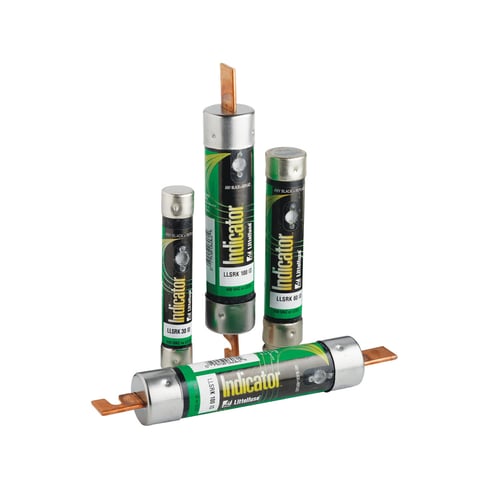

LittelFuse LLSRK015ID 15 Amp, 600 Volt, Class RK1 Time Delay Fuse
LittelFuse LLSRK015ID 15 Amp, 600 Volt, Class RK1 Time Delay Fuse
LittelFuse | ID: 644567
Manufacturer Part Number: LLSRK015ID
Specifications
| Description | LFSE LLSRK015ID FUS 600V T/D CLASSRK1 15A INDICATOR P |
| Amperage Rating | 15 A |
| Voltage Rating | 600V |
| Application | All General Purpose Circuits, Motors, Transformers and Safety Upgrades Applications |
| Catalog Description (MFR) | The all-new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented Indicator™ technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid-state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses. |
| Certifications | PROP65 |
| Fuse Type | Time Delay |
| Interrupt Rating | 200/20 kA |
| Marketing Message (MFR) | The all new LLSRK_ID series fuse is the most advanced Class RK1 fuse available today providing unparalleled performance and protection to modern circuits. The patented Indicator technology provides instant identification of a blown fuse greatly enhancing system up time, while the precision formed short circuit elements virtually eliminate damage to components from unexpected electrical faults. In addition, the all new solid state overload section has no moving parts, stopping unnecessary fatigue failures commonly found in other spring loaded fuses. |
| Material | Fiberglass |
| Mounting Type | Holder |
| Special Features | Time-Delay |
| Standard | UL 248-12, UL File No. E81895, CSA LR29862, Federal Specification WF-1814, PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Type | Current Limiting |
