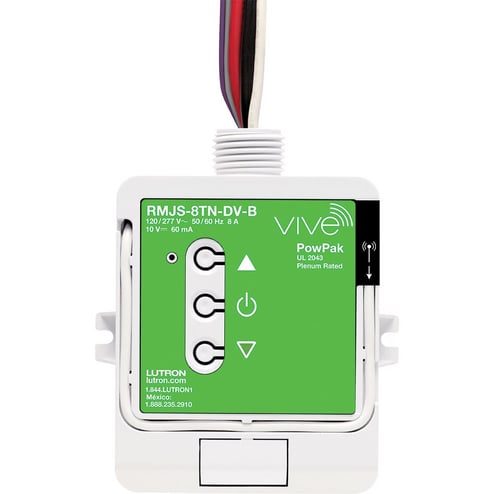

Lutron RMJS-8TN-DV-B DIMMING MODULE

10977 14271979 P I C E N 1

Technical Documents

Specifications

Description LUT RMJS-8TN-DV-B 0-10V DIMMINGMODULE
Amperage Rating 8 A
Application Indoor Applications
Catalog Description (MFR) Vive PowPak Dimming Module, 120/277 VAC, 434 MHz
Certifications NOM, UL
Color Green/White
Dimensions 3.94 IN H x 2.82 IN W x 1.25 IN D
Enclosure Plastic
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Frequency Rating 431 to 437 MHz
Lamp Type LED
Load 0 to 10
Material Plastic
Mounting Type Junction Box
Number Of Poles 1 Pole
Operating Temperature 32 to 104
Power Rating 550/610 mW
Sensing Range 60/30 ft
Special Features Controls LED/fluorescent fixture loads. 0-10V analog control is widely used in the fixture industry. Automatically adjusts to both sink and source LED and fluorescent fixtures.
Standard UL, cUL, FCC, ICC, COFETEL, NOM
Type Dimming module for 0-10V control, for use with emergency lighting
