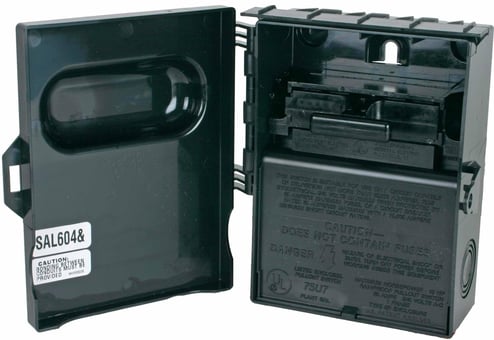

MIDWEST P065P 60 Amp, 2 Pole, 240 Volt, NEMA 3R, Non-Metallic Air Conditioner Disconnect
MIDWEST P065P 60 Amp, 2 Pole, 240 Volt, NEMA 3R, Non-Metallic Air Conditioner Disconnect
MIDWEST | ID: 29052
Manufacturer Part Number: P065P
Technical Documents
Specifications
| Box Quantity | 6 |
| American Recovery and Reinvestment Act (ARRA) Compliant | C |
| Amperage Rating | 60 A |
| Brand Name | Midwest Electric |
| Buy American Act (BAA) Compliant | C |
| Catalog Description (MFR) | Non-Metallic, Non-fusible disconnect pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance. |
| Commodity Code | 3320 |
| Concatenated Invoice Description | MIDWEST 60A GD ACD NF 10HP PLASTIC N3R + |
| Current Rating | 60 A |
| Description | MIDWEST P065P1 60A ENCL N/FUS PLLOUT |
| Enclosure | Plastic |
| Enclosure Material | Plastic |
| Indoor or Outdoor Use | Outdoor |
| Interrupt Rating | 10000 AMP |
| Invoice Description (MFR) | MIDWEST 60A GD ACD NF 10HP PLASTIC N3R + |
| Mounting | Surface |
| Number Of Poles | 2 Pole |
| Power Rating | 10 HP |
| Product Name | Non-Metallic Air Conditioner Disconnect |
| Safety Data Sheet (SDS) Flag | N |
| Size | 6 Inch W x 5-3/4 Inch D x 8 Inch H |
| Special Features | Pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance Door has padlock provisions to prevent unauthorized access Noryl thermoplastic enclosure is corrosion resistant and extremely durable, giving long maintenance free service Three-piece construction that opens up mounting and wiring areas, reduces installation time Numerous knockouts reduce installation time Straight-in, straight-out wiring saves time and money Replacement parts: NF65 fuse block, NF652 puller |
| Standard | UL/cUL Listed |
| Stripped Catalog Number | P065P |
| Type | Non-Fused Pull-Out AC Disconnect Switch |
| UNSPSC | 39122233 |
| Voltage Rating | 240V |
| Wire Size | 14 to 8 AWG Solid, 14 to 3 AWG Stranded (Copper), 12 to 8 AWG Solid, 12 to 3 AWG Stranded (Aluminum) |
