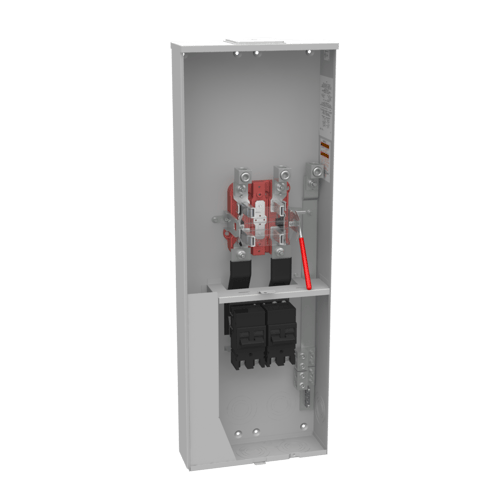

Milbank U5059-X-2/200-K3L 4 Terminal, Ringless Meter Socket, Large Closing Plate, 2-200 Amp Main Breaker
Milbank U5059-X-2/200-K3L 4 Terminal, Ringless Meter Socket, Large Closing Plate, 2-200 Amp Main Breaker
Milbank | ID: 113650
Manufacturer Part Number: U5059-X-2/200-K3L
Technical Documents
Specifications
| Description | MILB U6585-X-2/200-K3L 400A METERMAIN REPLACES U5059-X-2/200-K3L |
| Amperage Rating | 320 A |
| Voltage Rating | 240V |
| Application | Meter Socket With Main |
| Cable Entry | Overhead or Underground |
| Catalog Description (MFR) | 4 TERM RNGLS LRG CLS PLT 2-200 AMP MN BRKR SGL CONN LKG 4-600kcmil |
| Certifications | ECCN, PROP65 |
| Cutout Size | Two 200 Ampere Main Breakers |
| Dimensions | 42-7/16 IN H x 15 IN W x 4-7/8 IN D |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Enclosure Type | NEMA 3R |
| Equipment Ground | Ground Bar |
| Frequency Rating | 60 Hz |
| Hub Opening | Large Closing Plate |
| Insulation | Glass Polyester |
| Jaw Quantity | 4 Terminal |
| Line Side Wire Range | 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil |
| Load Side Wire Range | 1 AWG - 300 kcmil |
| Mounting Type | Surface |
| Number Of Cutouts | 2 |
| Number of Meter Positions | 1 Position |
| Number Of Receptacles | 0 |
| Phase | 1 |
| Standard | RoHS Compliant, UL Listed |
| Terminal | Single Mechanical |
| Type | Ringless |
| Wire Size | 6 AWG to 350 kcmil |
