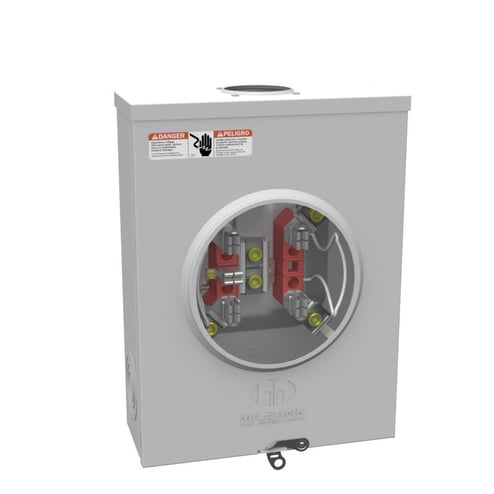

Milbank U7040-RL-TG-KK 200 Amp Ringless Meter Socket, 4 Terminal, Small Hub Opening, Triplex Ground Horn Bypass
Milbank U7040-RL-TG-KK 200 Amp Ringless Meter Socket, 4 Terminal, Small Hub Opening, Triplex Ground Horn Bypass
Milbank | ID: 7250
Manufacturer Part Number: U7040-RL-TG-KK
Technical Documents
Specifications
| Description | MILB U7040-RL-TG-KK 200A 4TERM600V "OVERHEAD HUB OPENING" |
| Amperage Rating | 200 A |
| Voltage Rating | 600V |
| Application | For use with meter mounting base |
| Cable Entry | Overhead or Underground |
| Cover Type | Ringless |
| Cutout Size | No Main Breaker |
| Dimensions | 4-1/8 IN ID x 11 IN OD x 14-9/16 IN H |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Enclosure Type | NEMA 3R |
| Equipment Ground | Triplex Ground |
| Frequency Rating | 60 Hz |
| Hub Opening | Small Hub Opening |
| Insulation | Glass Polyester |
| Jaw Quantity | 4 Terminal |
| Line Side Wire Range | 6 AWG - 350 kcmil |
| Load Side Wire Range | 6 AWG - 350 kcmil |
| Mounting Type | Surface |
| Number Of Cutouts | 0 |
| Number of Meter Positions | 1 Position |
| Number Of Receptacles | 0 |
| Phase | 1 Phase |
| Product Name | Single Position Meter Socket |
| Terminal | Lay in |
| Type | 1-Position |
| Wire Size | 6 AWG to 350 kcmil |
