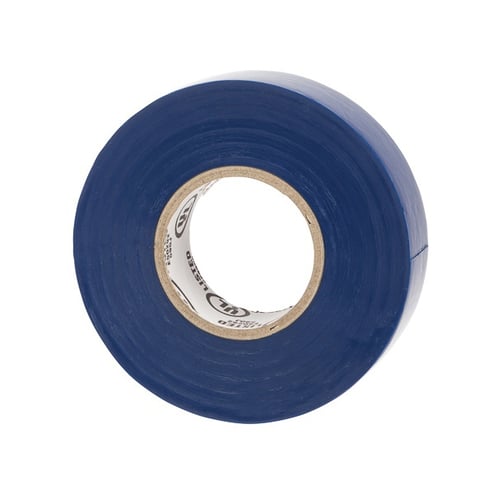

NSI WW-716-BL General Purpose Electrical Tape, 60FT x 3/4IN, Rubber Adhesive, Blue
NSI WW-716-BL General Purpose Electrical Tape, 60FT x 3/4IN, Rubber Adhesive, Blue
NSI | ID: 587682
Manufacturer Part Number: WW-716-BL
Technical Documents
Specifications
| Description | NSI WW-716-BL VINYL ELECTRICAL TAPE7MIL .75" 60FT BL |
| Voltage Rating | 600V |
| Adhesion Strength | 16 in-oz |
| Adhesive | Rubber |
| Application | For primary insulation for wire and cable splices up to 600 V, wire harnessing, jacketing on high voltage splices |
| Backing Material | PVC |
| Color | Blue |
| Dielectric Strength | 1200 V/mil |
| Material | Vinyl |
| Maximum Temperature | 176 deg F |
| Maximum Voltage | 600 |
| Resists | UV, Abrasion and Corrosion |
| Special Features | Good Ahesion and Elasticity, All Weather Performance, Great Tensile Strength, Resistant Tto UV, Abrasion and Corrosion, Falme-Retardant. |
| Temperature Range | 20° - 176° |
| Tensile Strength | 15 in-lb |
| Thickness | 7 mil |
| Type | General Purpose |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 2
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 13
- Medina Qty 0
- Middleburg Qty 7
- Streetsboro Qty 0
- Westlake Qty 5
- Willoughby Qty 0
- Youngstown Qty 1
