PC6AY05

P R E M I S E W I R I N G P C6 A Y03

Specifications

Description HPW PC6AY05 P-CORD, 10G, SHD,PC6A,Y
Application Data Center 10GbE, High-Performance Cable, PoE, Bandwidth Intensive Processing and Indoor Dry Environment Applications
Attenuation .1dB

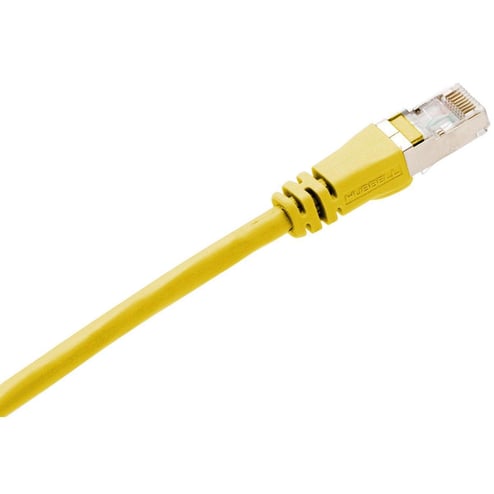

Catalog Description (MFR) Copper Solutions, Patch Cord, Cat6A, 10GHz, Shielded, Labeled, Yellow, 5' Length
Color Yellow
Connector Type RJ-45
Cord Length 5 FT
Insulation Material PVC
Jacket Material Thermoplastic
Marketing Message (MFR) NEXTSPEED ascent 10GbE is a tuned system of structured cabling components designed and center balanced to work together. NEXTSPEED ascent 10GbE delivers headroom beyond 625 MHz. The PC6A patch cords are constructed with specially designed patch cable and an assembly procedure delivering the industry's highest performing patch cord. Incorporated into the design, is a conductor sled optimizing performance, controlling NEXT and separating pairs providing a consistent contact-to-conductor alignment during termination.
Number Of Conductors 8-Conductor
Outside Diameter 0.218
Plug Type RJ45
Product Name Copper Solutions, Patch Cord, Cat6A, 10GHz, Shielded, Labeled, Yellow, 5' Length
Special Features Standard Product
Standard RoHS Compliant, UL File No. 1863, ANSI/TIA/EIA-568-C.2, IEEE 802.3af/802.3an, IEC File No. 60603-7, ISO 11801/60603-7, GreenWise
Type CM Rated Ascent Shielded Standard
Wire Size #24 AWG

Availability

  • Akron Qty 0
  • Bedford Qty 0
  • Chardon Qty 0
  • Cleveland Qty 0
  • Lighting Showroom Qty 0
  • Macedonia Qty 0
  • Mayfield Village (current selection) Qty 59
  • Medina Qty 0
  • Middleburg Qty 0
  • Streetsboro Qty 0
  • Westlake Qty 0
  • Willoughby Qty 0
  • Youngstown Qty 0
