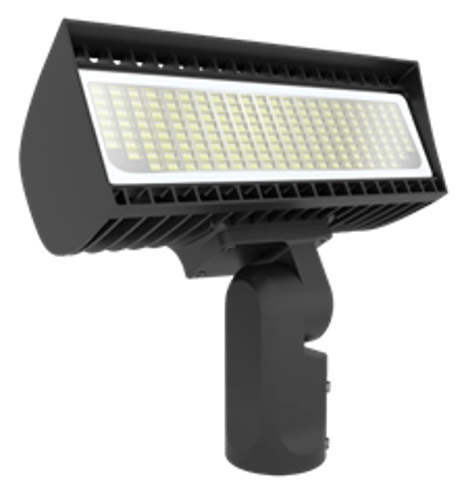

RAB FXLEDSSF FlexFlood 120-277V 0-10V Slipfitter Mount 40K/50K - 69W/97W/132W/168W - Bronze


Specifications

Description RAB FXLEDSSF LED FLEXFLOODSLIPFITTER MOUNT 0-10V 120-277V40K/50K 69W/97W/132W/168W BRZ
Amperage Rating 0.58/0.34/0.29/0.25/0.81/0.47/0.41/0.35/1.10/0.64/0.55/0.48/1.40/0.81/0.70/0.61 A
Voltage Rating 120/277V
Application 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Average Life 100000 Hrs
Ballast Type 0 to 10 V Dimmable
Catalog Description (MFR) FLEX FLOOD SMALL 168/132/97/69W 3/3000/4000/5000K SLIPFITTER BRONZE
Certifications DLCPREMIUM
Color Bronze
Color Rendering Index (CRI) 81
Color Temperature 4000 K
Dimensions 12.94 IN H x 14.63 IN W x 5.44 IN D
Enclosure Dies-cast aluminum
Enclosure Type NEMA 6H x 6V/IP66
Environmental Conditions Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
Finish Bronze
Fixture Type Flood Light
Housing Color Bronze
Housing Material Die-Cast Aluminum
Includes Dimming control wiring for 0-10V dimming systems
Lamp Type LED
Lamp Wattage 69, 97, 132, 168 W
Lens Tempered Glass
Lumens 10206 to 22010 Lumens
Marketing Message (MFR) This 78W spotlight combines high lumen output and a concentrated narrow beam distribution to illuminate objects up to 80 feet away with brilliant precision. Ideal for lighting large flags, tall building facades and signage.
Mounting Type Slipfitter
NEMA Rating 6HX6V
Power Rating 168
Shape Rectangular
Special Features Field-adjustable Power/CCT
Standard BAA Compliant, ANSI C78.377-2017, DLC 5.1, Mercury Free, RoHS, IESNA LM-79 and LM-80, UL Listed, PROP65
Type Field-Adjustable
