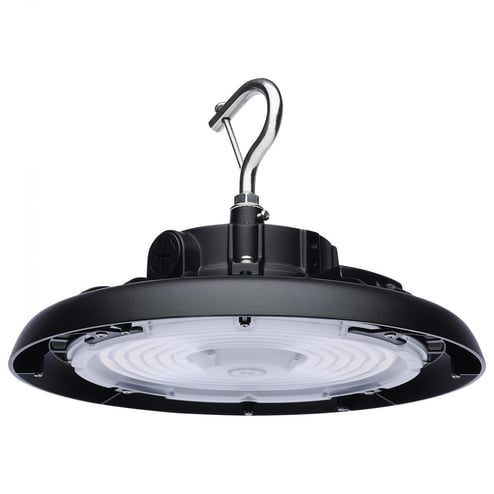

Satco 65-770R3 LED UFO Highbay, CCT & Wattage Adjustable, Black

65 770 R3

Technical Documents

Specifications

Description SAT 65-770R3 11" LED UFO HIGHBAY30K/40K/50K 80W/100W/120W 0-10V11840Lm-18600Lm 120-347V IP65 BLACK
Voltage Rating 120-347V
Ballast Type 0 to 10 V Dimmable
Base Type Integrated
Catalog Description (MFR) Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay; 120-347 Volt; Black Finish
Color Rendering Index (CRI) 80
Color Temperature 3000/4000/5000 K
Dimensions 7.3 IN H x 11 IN W
Dimmable YES
Enclosure Type IP65
Fixture Wattage 80, 100, 120 W
Housing Material Die-Cast Aluminum
Includes Locking Hanging Hook, 6 Foot Whip and Integrated Bulb
Indoor or Outdoor Use Indoor
Lamp Type Integrated LED
Lamp Wattage 80, 100, 120 W
Lens Polycarbonate
Lumens 11840 to 18600 Lumens
Marketing Message (MFR) SATCO NUVO's Round High Bay Field Selectable fixtures offer an energy efficient and low-maintenance alternative to traditional HID fixtures. These luminaires are field selectable, giving users the flexibility to choose from three wattage and three CCT options during installation. The fixtures are constructed with a durable die-cast aluminum housing and an IK08 impact-rated polycarbonate lens. Featuring 6kV surge protection, 120V-347V range voltage and NEMA 4X (IP65) wet location rating, these high bays are resilient in various commercial environments. Compatible with a wide variety of accessories (sold separately) fixtures can be customized to accommodate a multitude of lighting needs., SATCO NUVO's 65-770R3 Round High Bay Field Selectable fixture in a black finish, offers an energy efficient and low-maintenance alternative to traditional HID fixtures. This luminary is field selectable, giving users the flexibility to choose from three wattage and three CCT options during installation. The fixture is constructed with a durable die-cast aluminum housing and an IK08 impact-rated polycarbonate lens. Featuring 6kV surge protection, 120V-347V range voltage and NEMA 4X (IP65) wet location ratings, this high bay is resilient in various commercial environments. Compatible with a wide variety of accessories (sold separately) this fixture can be customized to accommodate a multitude of lighting needs.
Standard NSF Approved, FCC Compliant, cULus, Canadian Standard ICES-005, PROP65, RoHS Compliant, DLC Approved, NEMA 4X, IP65, Wet Location Listed

Availability

  • Akron Qty 0
  • Bedford Qty 1
  • Chardon Qty 1
  • Cleveland Qty 0
  • Lighting Showroom Qty 0
  • Macedonia Qty 0
  • Mayfield Village (current selection) Qty 33
  • Medina Qty 3
  • Middleburg Qty 5
  • Streetsboro Qty 5
  • Westlake Qty 0
  • Willoughby Qty 8
  • Youngstown Qty 5
