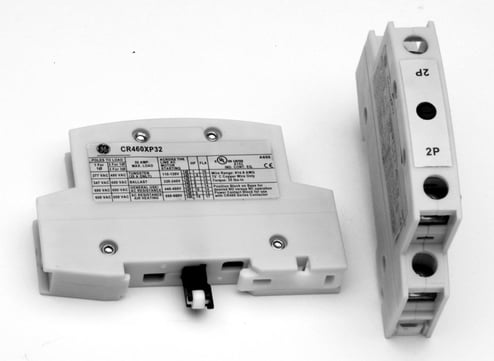

GE CR460XP32 2-Pole Power Pole Assembly, 30 A

I D P I C v1 C R460 X P31

Technical Documents

Specifications

Description ABB CR460XP32 2P POWER BLOCK
Amperage Rating 30 A
Voltage Rating 600V
Application Electrical Distribution and Control Applications
Catalog Description (MFR) Lighting Contactors. Power Poles. CR460 Series basic contactors accept up to 6 single- or double-pole power poles. These can be used to form up to: 12 NO poles when 6 double-poles are used in the NO positions (1-6) or 8 NC poles with 4 double-poles in the NC positions (1-4) + 4 NO poles with 2 double-poles in the 2 NO positions (5-6). Packaged individually and overpacked in multiple of 5.
Dimensions 3.8 IN H x 2.7 IN W x 0.6 IN D
Number Of Poles 2 Pole
Product Name Contactor Power Pole
Special Features Lighting Contactors. Power Poles. CR460 Series basic contactors accept up to 6 single- or double-pole power poles. These can be used to form up to: 12 NO poles when 6 double-poles are used in the NO positions (1-6) or 8 NC poles with 4 double-poles in the NC positions (1-4) + 4 NO poles with 2 double-poles in the 2 NO positions (5-6). Packaged individually and overpacked in multiple of 5.
Type 2-Pole

Availability

  • Akron Qty 2
  • Bedford Qty 2
  • Chardon Qty 4
  • Cleveland Qty 17
  • Lighting Showroom Qty 0
  • Macedonia Qty 0
  • Mayfield Village (current selection) Qty 27
  • Medina Qty 4
  • Middleburg Qty 2
  • Streetsboro Qty 0
  • Westlake Qty 0
  • Willoughby Qty 5
  • Youngstown Qty 9
