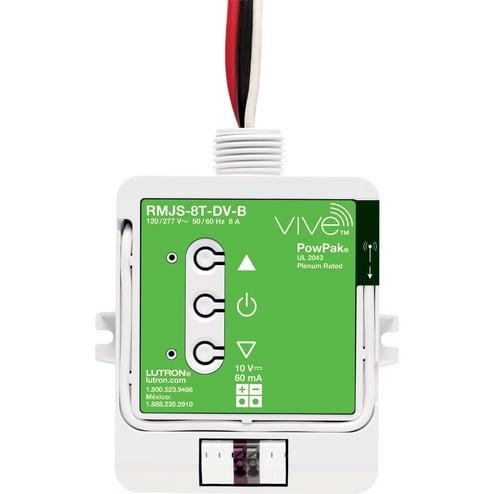

Lutron RMJS-8T-DV-B POWPAK 0-10V 434REPLACES RMJ-5T-DV-B
Lutron RMJS-8T-DV-B POWPAK 0-10V 434REPLACES RMJ-5T-DV-B
Lutron | ID: 236014
Manufacturer Part Number: RMJS-8T-DV-B
Technical Documents
Specifications
| Description | LUT RMJS-8T-DV-B POWPAK 0-10V 434REPLACES RMJ-5T-DV-B |
| Voltage Rating | 120-277V |
| Application | Lighting Control |
| Catalog Description (MFR) | PowPak dimming module, controls up to 60 mA of 0-10V controlled fixtures together, switches up to 8 A, 120/277 VAC, 434 MHz, Vive enabled |
| Certifications | NOM, UL |
| Color | Green/White |
| Dimensions | 3.94 IN (100 mm) x 2.82 IN (72 mm) |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Frequency Rating | 431 to 437 |
| Load | 0 to 10 |
| Material | Plastic |
| Mounting Type | Box |
| Number Of Poles | 1 Pole |
| Operating Temperature | 32 to 104 |
| Product Name | Dimming Module |
| Special Features | Controls LED/fluorescent fixture loads. 0-10V analog control is widely used in the fixture industry. Automatically adjusts to both sink and source LED and fluorescent fixtures. |
| Standard | UL, cUL, FCC, ICC, COFETEL, NOM |
| Type | Dimming module for 0-10V control |
Availability
- Akron Qty 0
- Bedford Qty 0
- Chardon Qty 0
- Cleveland Qty 0
- Lighting Showroom Qty 0
- Macedonia Qty 0
- Mayfield Village (current selection) Qty 4
- Medina Qty 0
- Middleburg Qty 0
- Streetsboro Qty 0
- Westlake Qty 0
- Willoughby Qty 0
- Youngstown Qty 0
